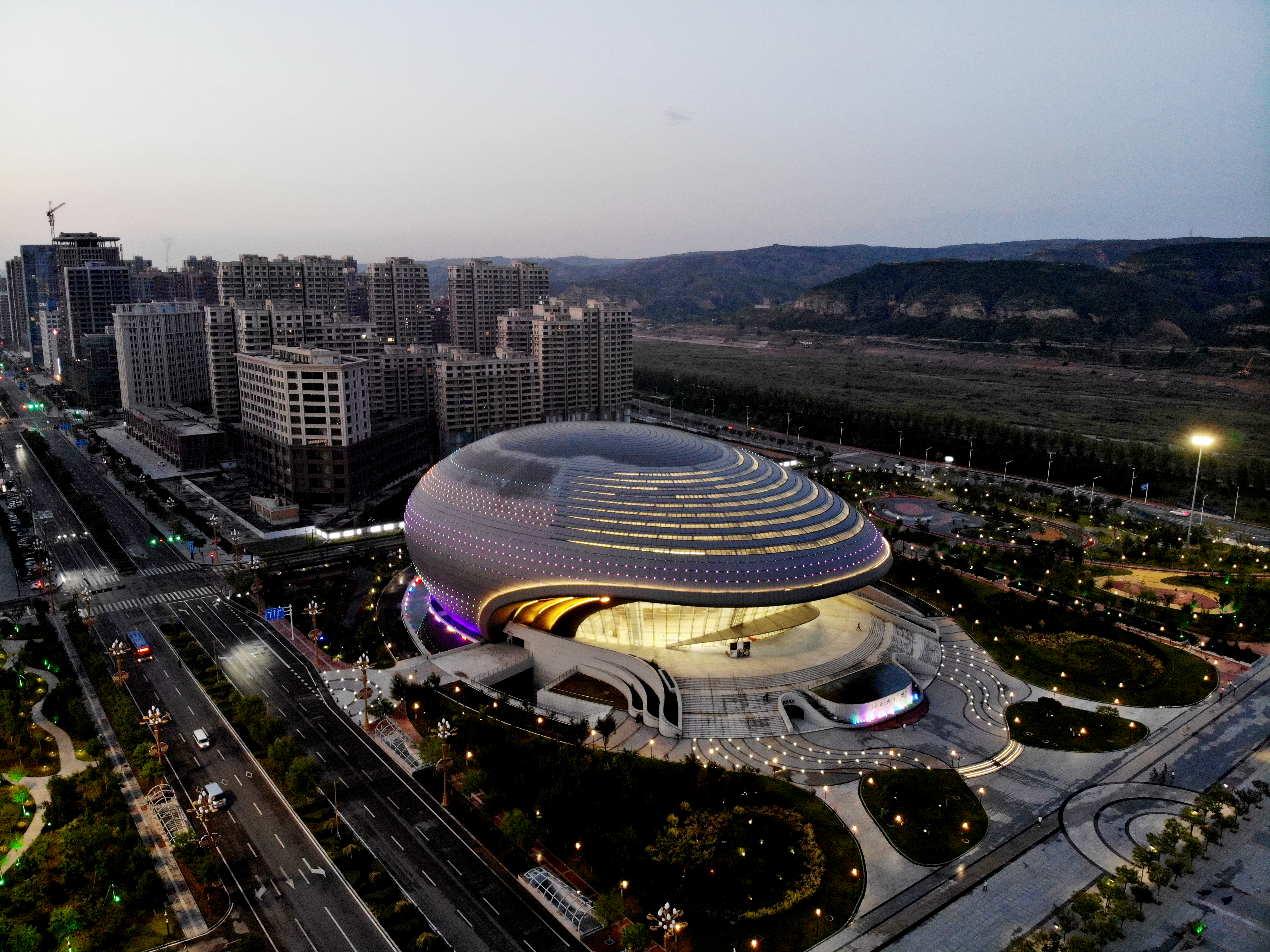

西南向鳥瞰 Southwest Aerial View
項目概況
Overview
神木藝術中心是神木市最重要的文化藝術建筑,是一棟觀演類綜合建筑,涵蓋劇院(1200座)、電影院(700座、5廳)、開放小劇場(500人)、展廳、排練廳、化妝間、民俗館、展廳、畫廊、辦公及配套商業等功能,作為中國藝術節分會場, 多次承接國內外大型文藝演出。
As a comprehensive building for watching performances, Shenmu Grand Theatre (Shenmu Children's Palace and Shenmu Art Center) is the most important cultural and artistic building in Shenmu City, consisting of the theater (1,200 seats), cinema (700 seats and 5 halls), open small theater (500 people), exhibition hall, rehearsal hall, dressing rooms, folk custom hall, gallery, office and supporting businesses, etc. It served as the venue for the 11th China Art Festival.

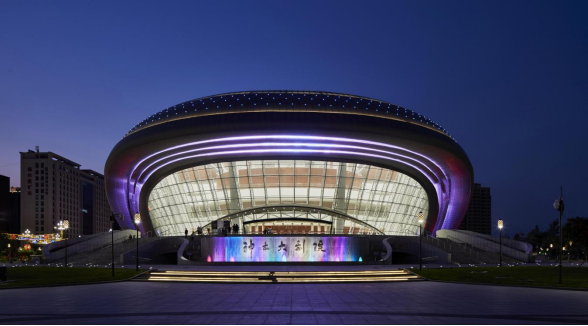

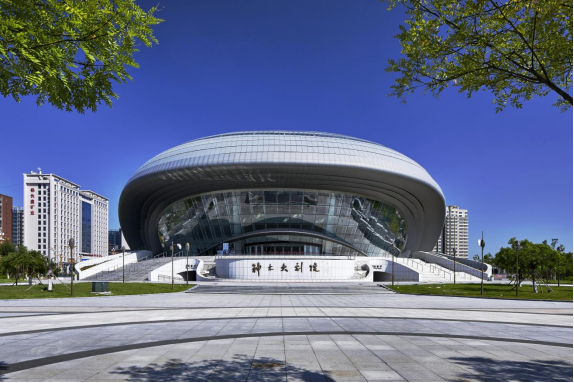

主入口 Main entrance

主入口 Main entrance

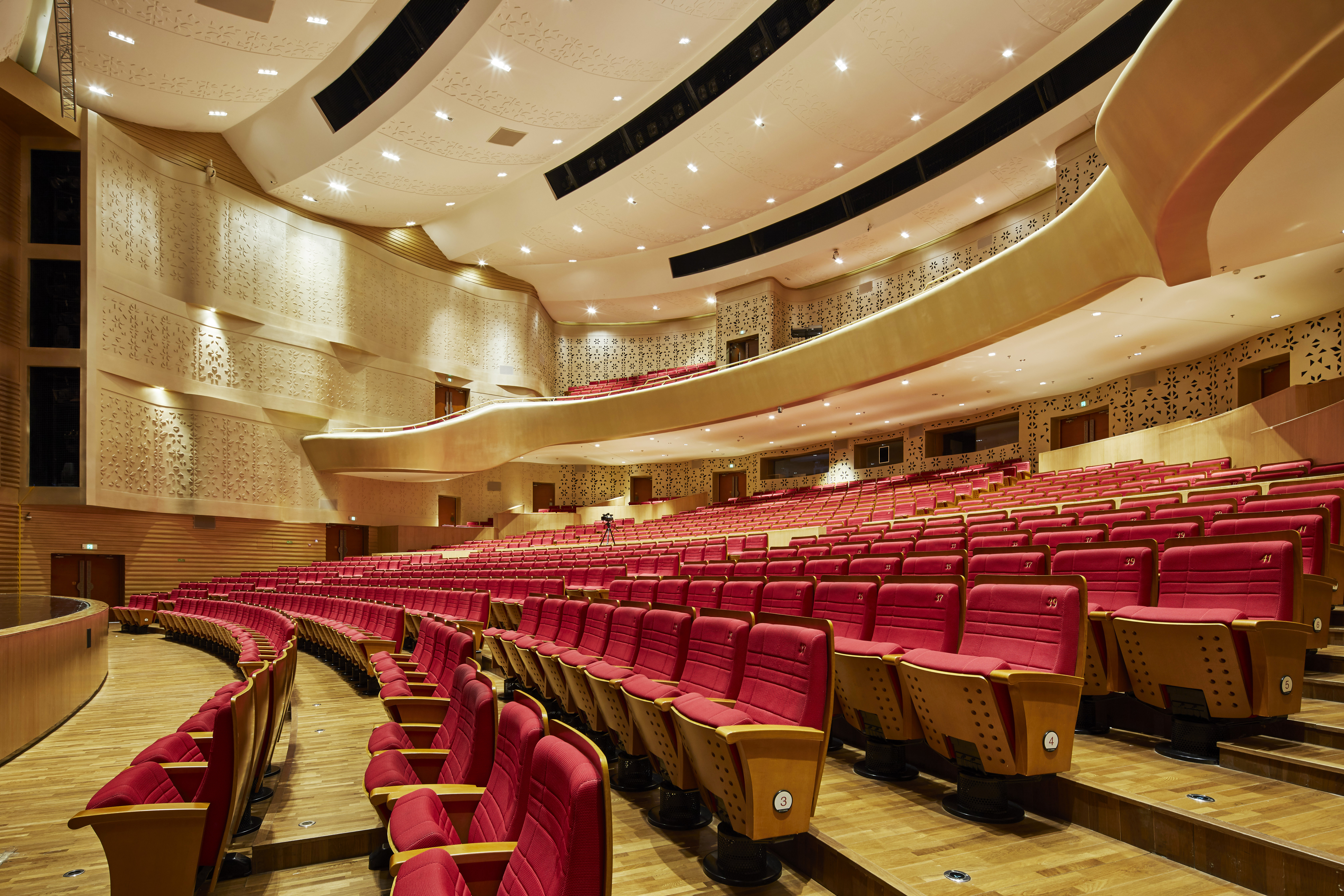

觀眾廳 Audience hall

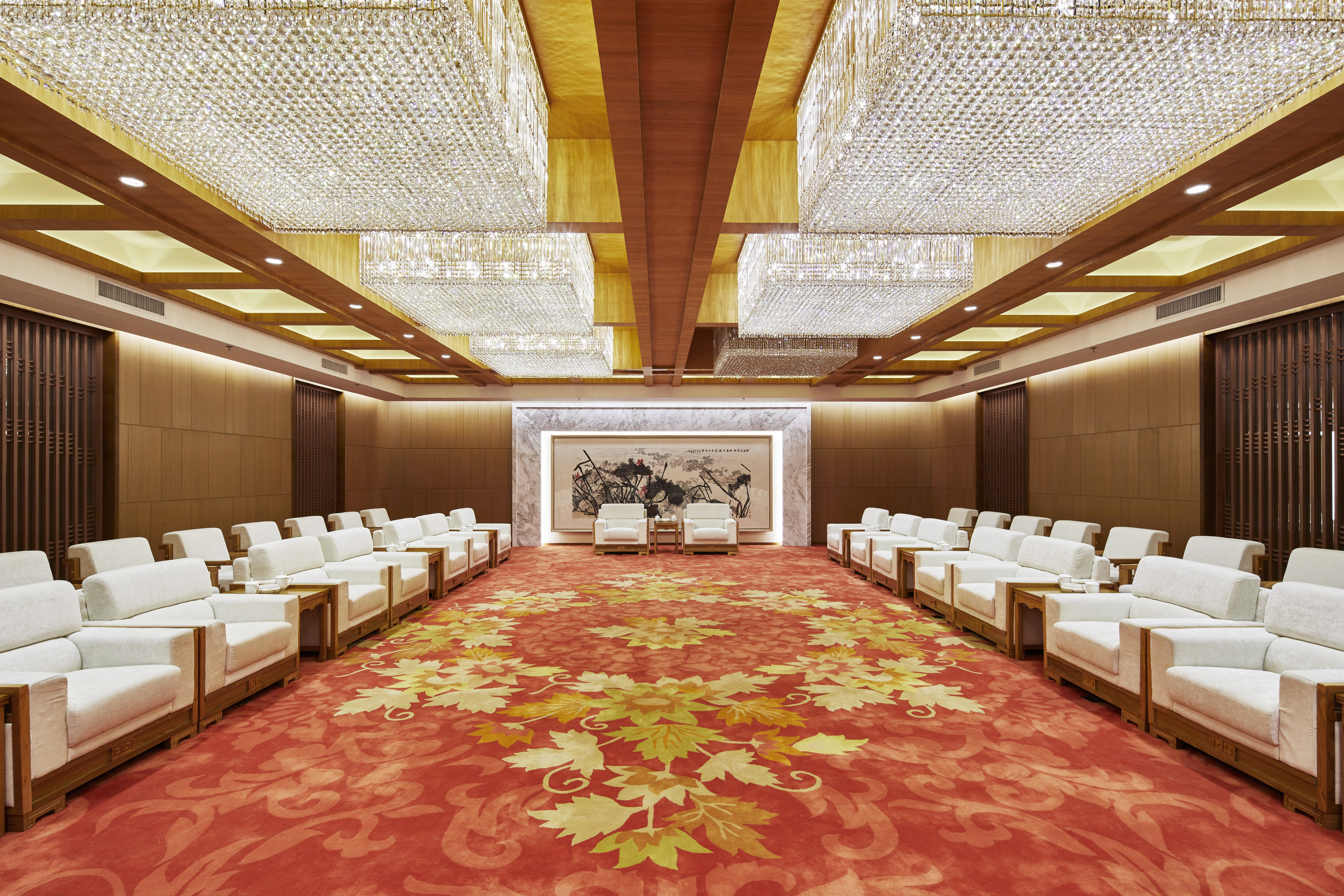

貴賓接待室 VIP reception room

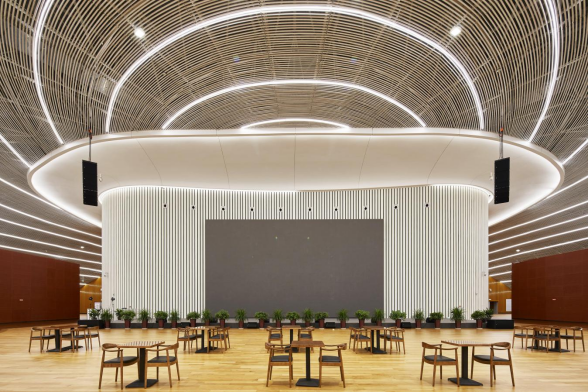

室內休息廳 Indoor lounge

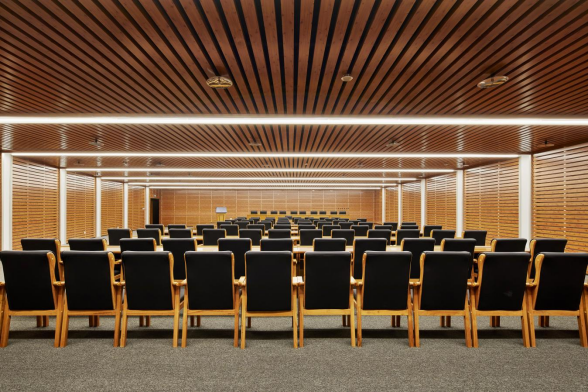

報告廳 Lecture hall
場所環境
Location Environment
項目位于神木市政務文化核心區,東臨窟野河,南接和諧廣場,西鄰神木行政中心,是最具有標志性和統領性的城市節點建筑。其流動豐富的空間體驗及自由獨特的藝術氛圍,與場所環境有機融合,成為市民游覽觀光的首選之地。
The project, located in the core area of government affairs and culture in Shenmu City, borders Kuye River in the east, Harmony Square in the south and Shenmu Administrative Center in the west. It is the most symbolic and leading urban node building, with the flowing and rich space experience, and free and unique artistic atmosphere organically integrated with the location and environment, becoming the first choice for citizens to visit.

南向鳥瞰 South Aerial View

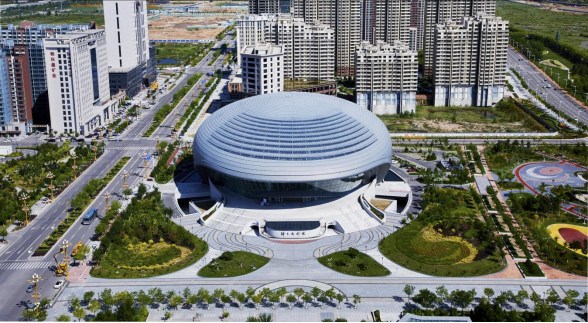

西南向鳥瞰 Southwest Aerial View
藝術之卵
Egg of Art

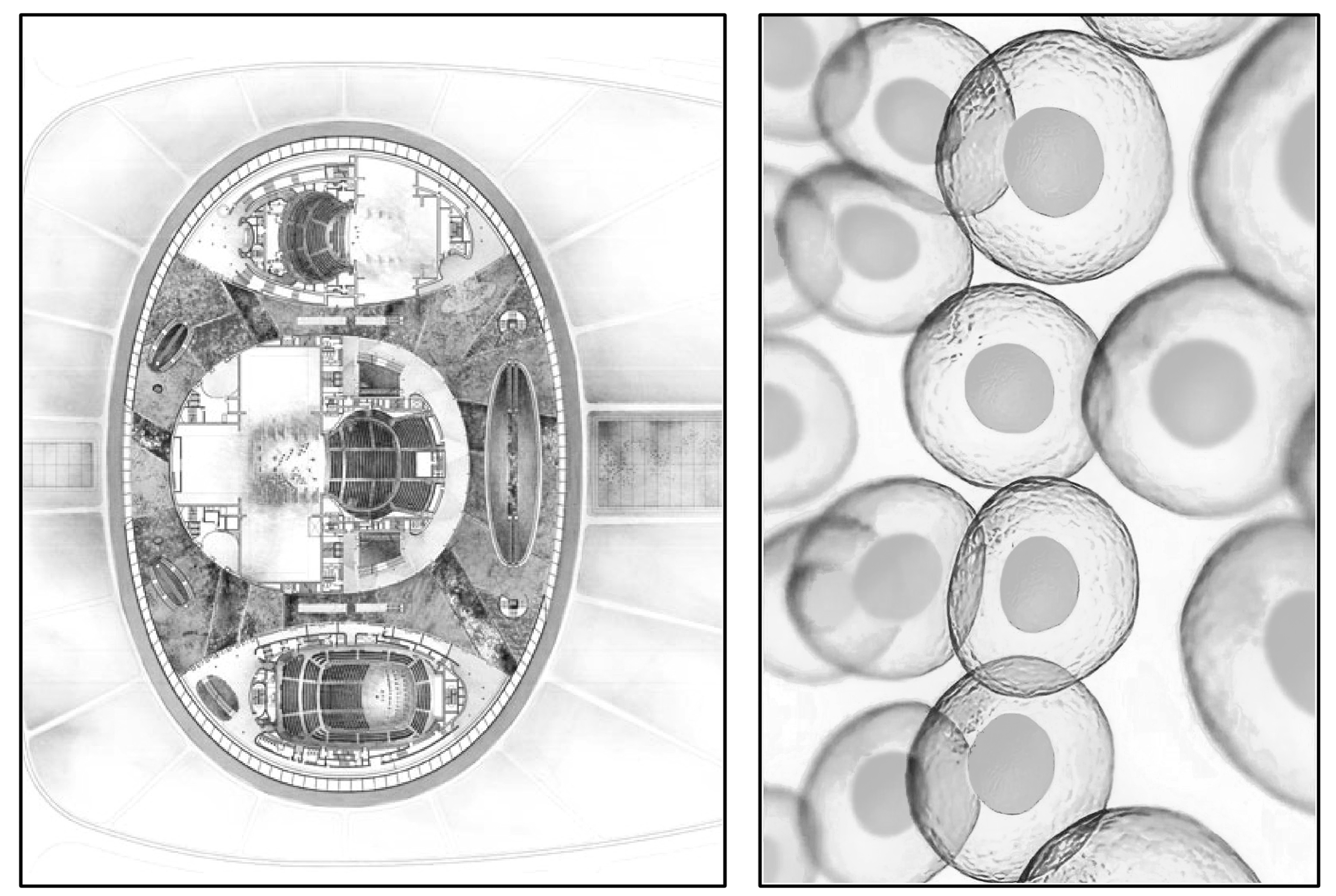

設計理念 Design concept
基地鄰河,取河水流動之意,采用曲線造型設計,以“藝術之卵”寓意城市藝術的孵化器。曲面外殼下的空間設計自由連續、開合有序,視覺體驗豐富;層層遞進的空間層次完美應和了設計主旨。
The base is adjacent to the river, indicating the flowing river, and the curve modeling design of "the egg of art" symbolizes the incubator of urban art. The free and continuous space design under the curved shell with order opening and closing provides the rich visual experience; the progressive spatial levels perfectly correspond to the themed design.

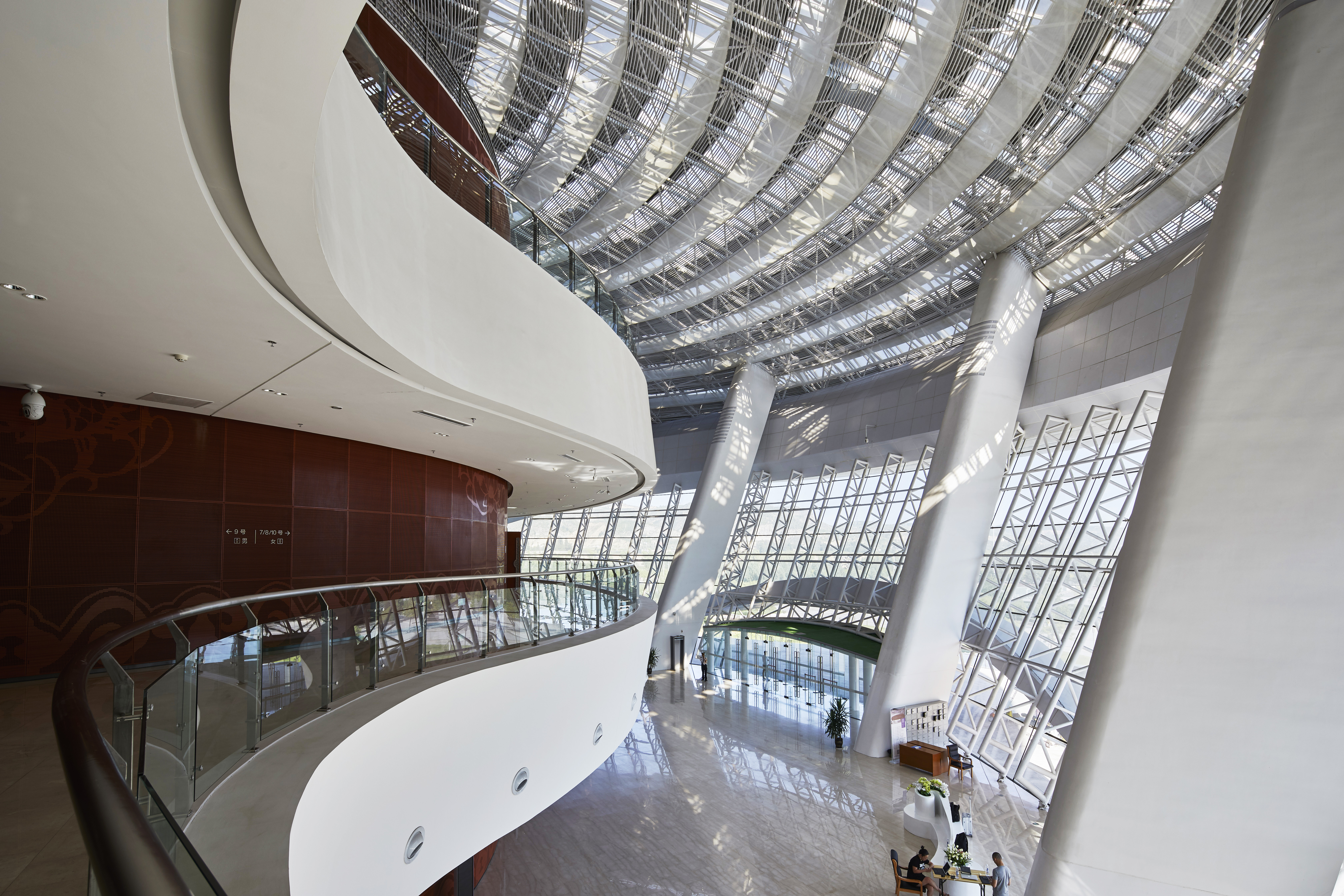

俯瞰前廳 Overlooking the front hall
蛋形外殼下的前廳空間,猶如自由流動的水體將劇場包裹其中,神木的藝術精神也在此孕育孵化,繼而華麗綻放。
The lobby space under the egg-shaped shell is like a free-flowing water body wrapping the theater, where the artistic spirit of Shenmu is gestated and hatched, and then blooms magnificently.

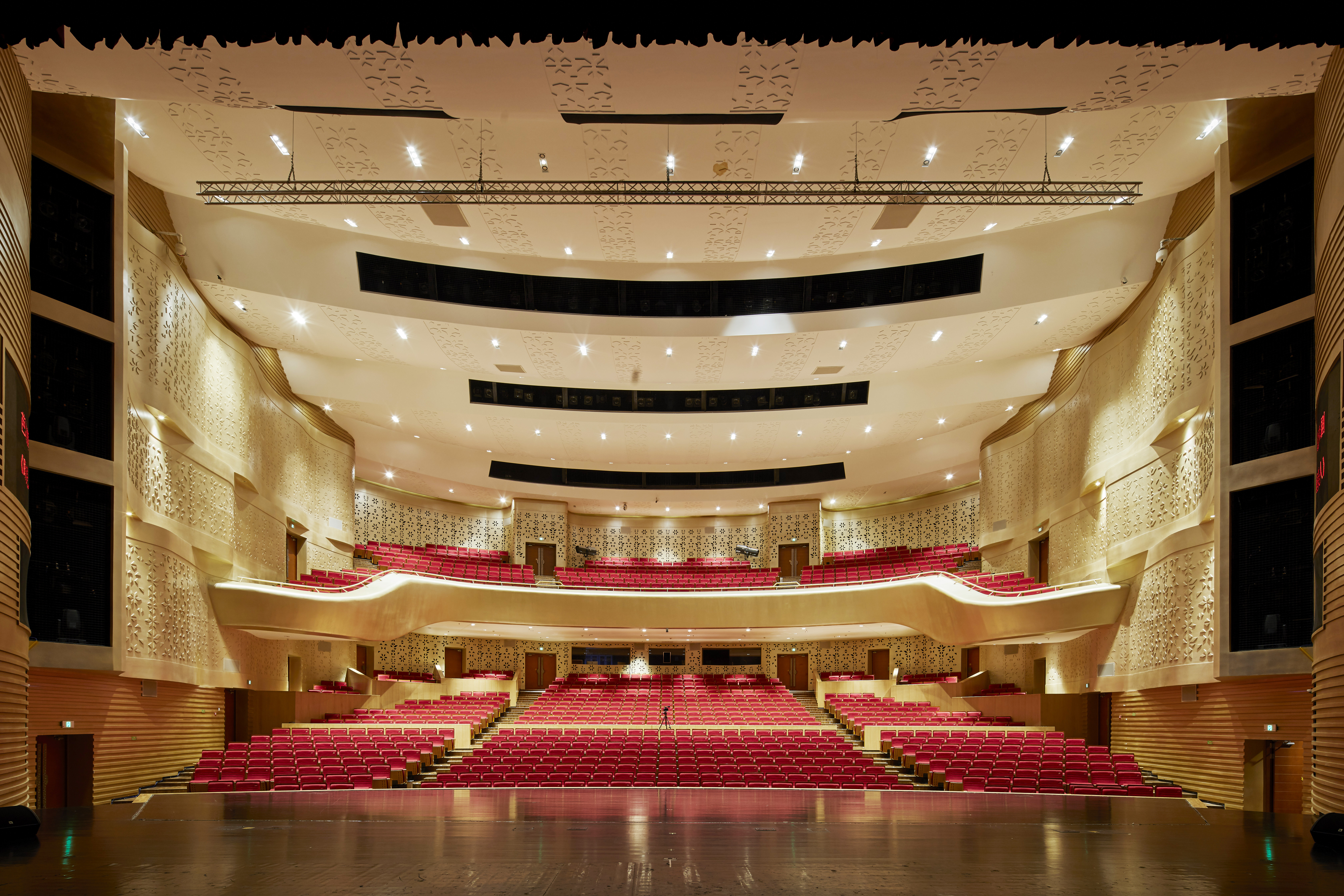

觀眾廳 Audience hall

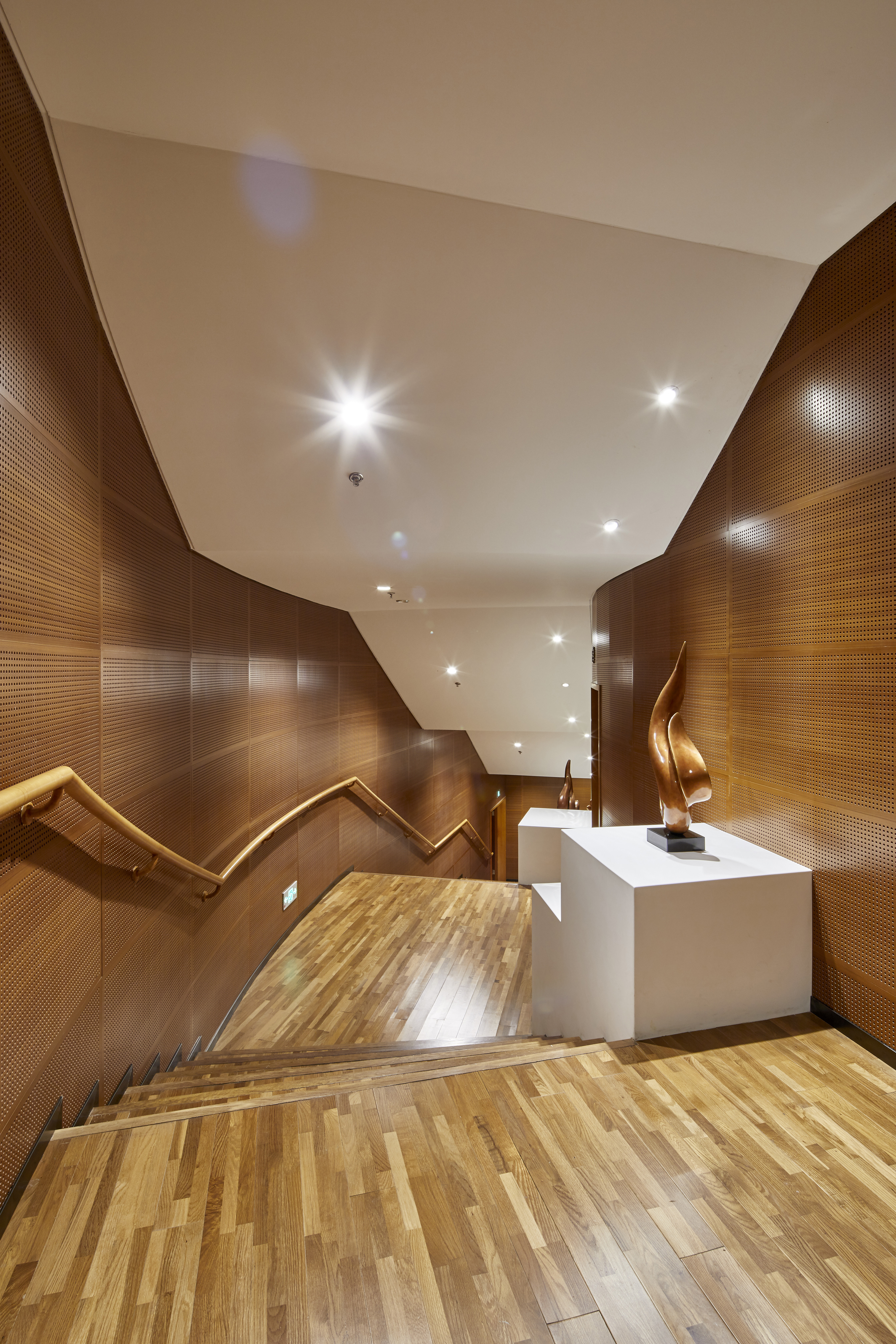

觀眾廳貴賓通道 Auditorium VIP passage
空間集約
Intensive Space

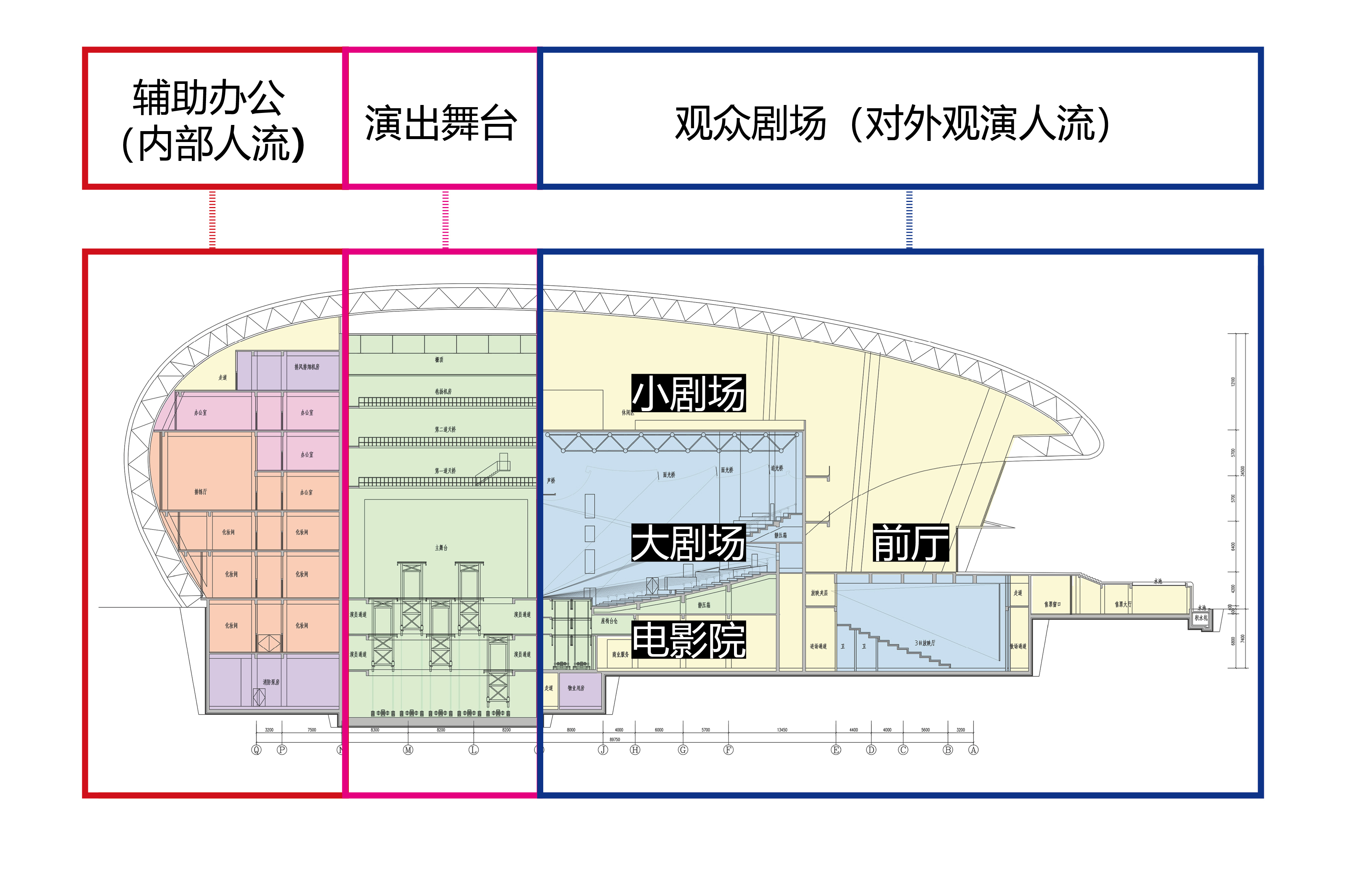

剖面空間 Profile space
方案遵循整體性設計原則,結合場地環境,將空間巧妙組合。從外至內水平劃分觀眾(外一前廳觀眾廳)、演出(中一舞臺)、輔助(內一排練廳化妝間)三大區域。
According to the principle of holistic design, the scheme skillfully combines the spaces based on the location and environment. From the outside to the inside, it is divided into three areas such as the audience (outer - front audience hall), performance (middle - stage) and auxiliary (inner - rehearsal hall and dressing room).

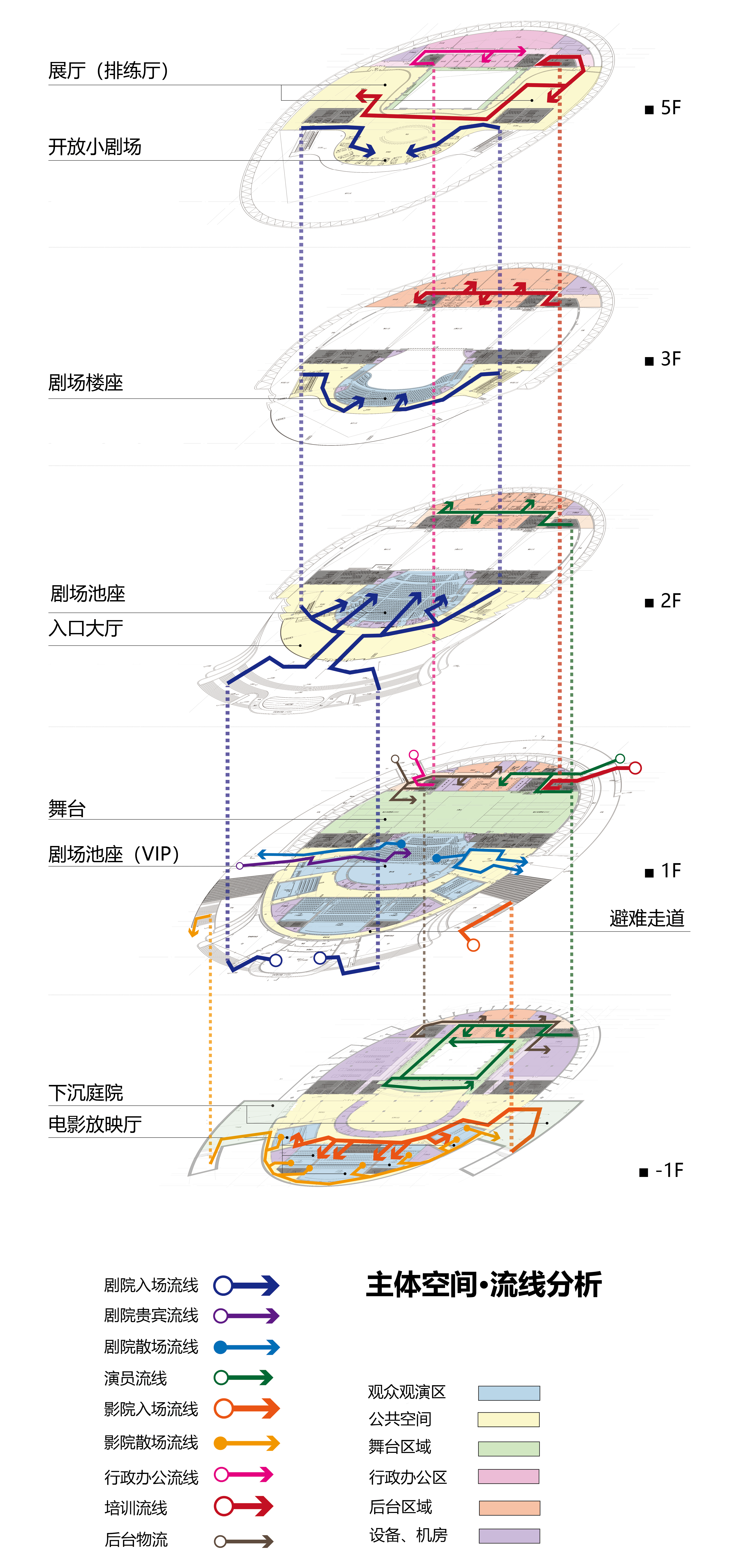

流線分析 Streamline analysis
充分利用建筑豎向空間,自上而下垂直設置開放小劇場、大劇場、電影院等功能,空間利用充分集約,分區明晰合理、流線高效便捷。
The vertical space of the building is made full use to vertically set up functional areas such as open small theater, large theater and cinema from top to bottom. The space is utilized intensively, the zoning is clear and reasonable, and the streamline is efficient and convenient.

首層平面圖 First floor plan

二層平面圖 Second floor plan
新型屋面
New roof
頂部細節 Roof detail
屋面為類橢球形金屬屋面,頂部設條形天窗增加了公共空間的自然采光,同時也豐富了屋頂效果.
The strip skylight is set at the top of ellipsoidal metal roof to increase the natural lighting of the top floor of public space while enriching the visual effects.

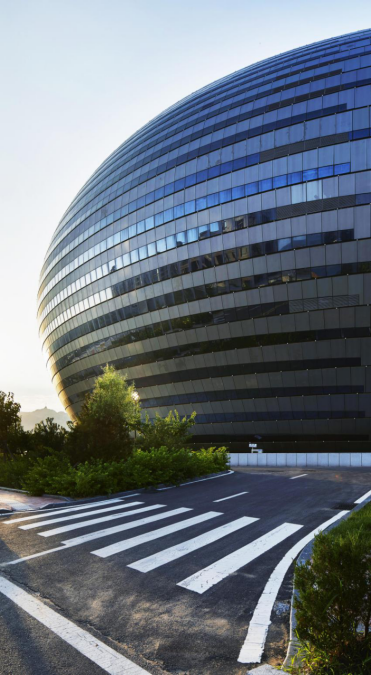

幕墻細節 Curtain wall detail
屋面構造具有防水、吸聲、隔聲、保溫、輕質等多種功能,設置三道天溝和虹吸雨水排放系統,充分考慮排水、引水功能;天溝設計恒功率電伴熱帶,實現除冰融雪功能,適應北方氣候特征。
The roof structure is featured with the watertightness, sound absorption, sound insulation, heat preservation and light weight. Three gutters and siphon rainwater drainage system are set up with due account taken of the drainage and water diversion; the gutter is designed with constant power electric heating belt for clearing the ice and melting the snow considering the northern climate characteristics.
項目信息
Information
設計單位:中科院建筑設計研究院有限公司
主創建筑師:李昕濱
建筑:李昕濱、薛志鵬、鄒錦銘、王子瑜、黃祺媛
結構:朱繼忠、宋麗梅
暖通:孟慶宇、馮曉亮
電氣:張晉波、張宏宇、池恒
給排水:劉揚文、李欣、彭世興
攝影師:華書勇
項目地點:陜西·神木
設計時間:2011年
建成時間:2017年
用地面積:27450m2
建筑面積:32959㎡
公司網站:https://www.adcas.cn/
投稿方聯系郵箱:a2@adcas.cn
獎項:2019年“北京市優秀工程勘察設計獎”公共建筑綜合獎三等獎
